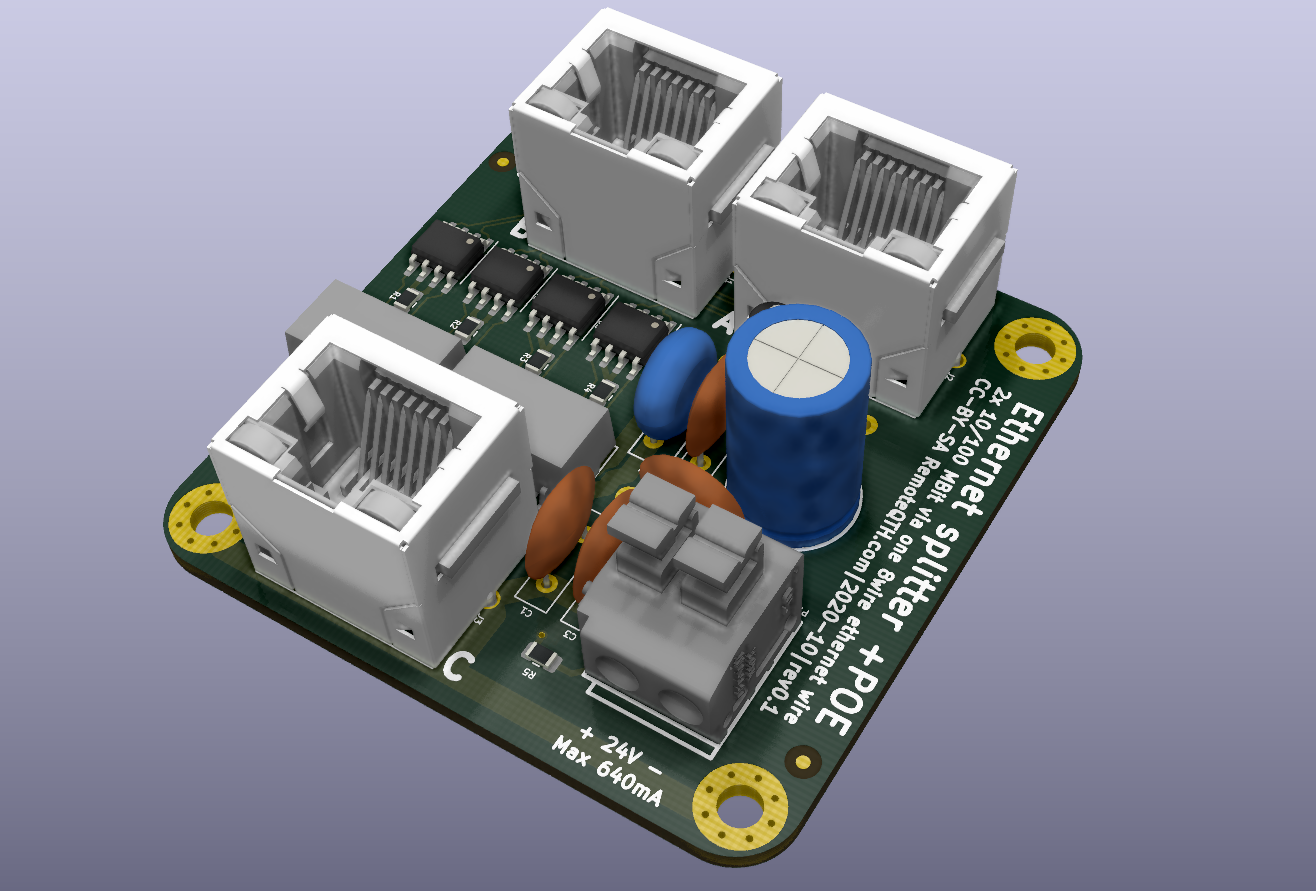

Ethernet splitter +POE


  • For split/join two 100 Mbit ethernet, to one UTP wire +POE
  • POE terminal transfer DC voltage from one end to second
  • POE limitation MAX 24V/640mA (15W)
  • Both side center RJ45 connetor LED, show if POE is present
  • Ethernet is galvanically isolated, with insulation 2x 1,5 kV
  • Center single wire recomended use with SFTP cable (shield)
  • Two grounding potentials GND and PE (Earth) for center line
